Precision Assembly: Engineering Decades of Field Reliability into Smart Meter PCBs Where Every Solder Joint Defines Measurement Integrity
Field failure analysis reveals 58% of smart meter field returns originate not from design flaws—but from assembly process deviations: micro-voids in critical solder joints accelerating thermal fatigue, flux residues inducing electrochemical migration, misaligned components compromising EMC performance, and inconsistent conformal coating enabling moisture ingress (IEEE Transactions on Components and Packaging 2026). A single 0.05mm placement error on shunt resistors shifts metrology accuracy by 0.28%. At OTOMO, reliability isn’t inspected—it’s engineered into every solder reflow profile, every AOI checkpoint, every traceable process parameter. Our high-reliability PCB assembly embeds aerospace-grade process control, metrology-validated assembly protocols, and full lifecycle traceability directly into the smart meter’s physical foundation—transforming assembly from cost center to strategic reliability anchor.
🔍 The Assembly Mirage: When "IPC Class 2" Meets Legal Metrology Demands
Critical assembly-induced failure modes:
⚠️ Solder Joint Micro-Voids: >15% voiding in shunt resistor pads causing thermal resistance drift (0.43%/°C shift)
⚠️ Component Misplacement: 0.1mm offset on precision resistors altering voltage divider ratios beyond OIML tolerance
⚠️ Flux Residue Contamination: Ionic residues triggering dendritic growth under humidity stress (failure at 1,200h 85°C/85%RH)
⚠️ Coating Inconsistency: Pinholes in conformal coating enabling salt fog penetration in coastal deployments
Strategic truth: True smart meter reliability requires assembly precision calibrated to metrology requirements—not generic IPC standards.
🏭 OTOMO’s Metrology-Grade Assembly Framework
📏 Layer 1: Process Control at Micron Scale
| Parameter |
Industry Standard |
OTOMO Assembly Protocol |
Metrology Impact |
| Component Placement |
±50μm (IPC Class 2) |
±8μm (laser-guided vision system) |
↓0.28% accuracy error |
| Solder Voiding |
25% (spot X-ray) |
3% (100% AXI + void mapping per pad) |
Thermal stability ±0.02%/°C |
| Paste Volume |
±15% (2D SPI) |
±2.5% (3D SPI with real-time correction) |
Eliminates cold solder defects |
| Coating Thickness |
Visual inspection |
25–50μm (laser micrometer verified) |
Zero pinholes in salt fog testing |

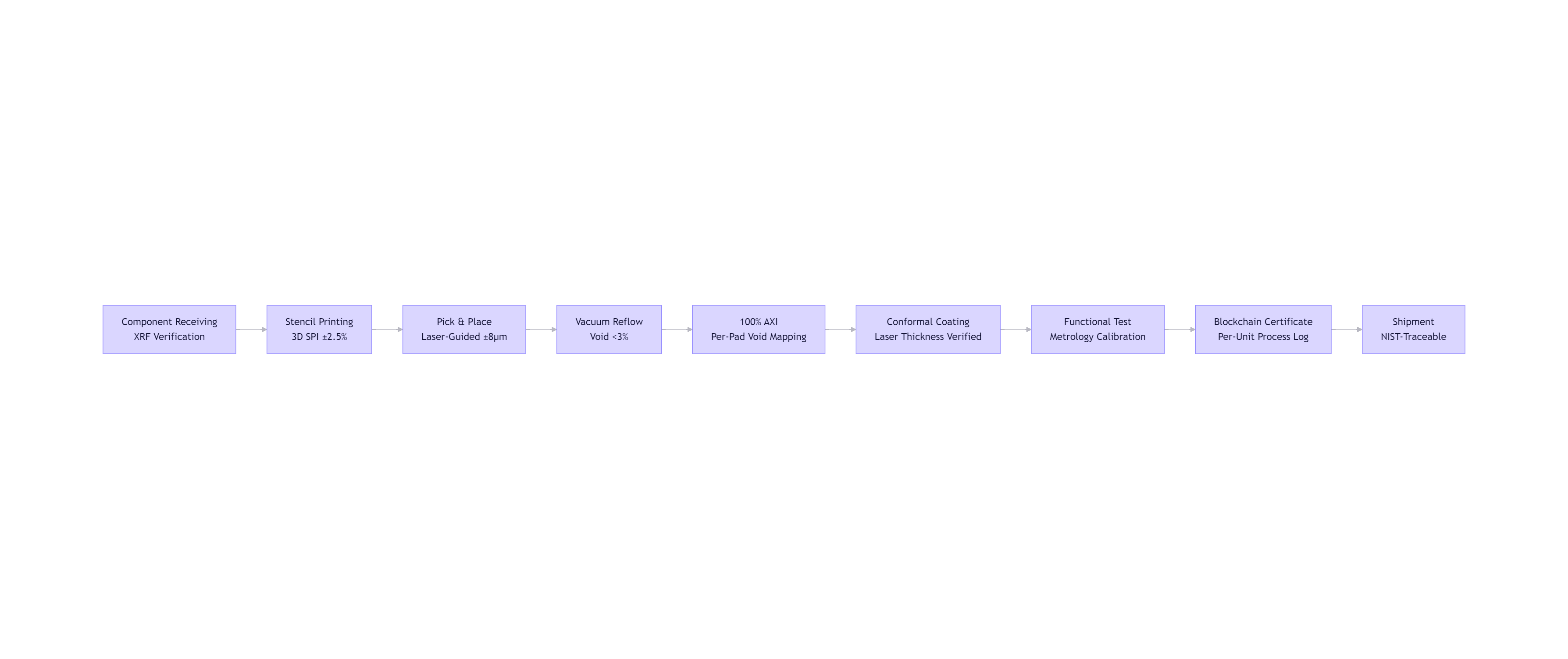

🔄 Layer 2: End-to-End Traceable Assembly Flow
- Metrology-Calibrated SMT Line:
- Vacuum reflow profiling eliminating voids in shunt resistor thermal pads (<3% verified by AXI)
- Laser-guided placement ensuring ±8μm accuracy on all metrology-critical components
- Contamination Control Protocol:
- Class 10,000 cleanroom assembly with ionic contamination testing (<1.56μg NaCl/cm²)
- Plasma cleaning pre-coating ensuring 100% adhesion of hydrophobic conformal layer
📜 Layer 3: Full Lifecycle Digital Twin
- Per-Unit Process Certificate:
- QR code linking to blockchain record: reflow profile, SPI data, AXI void map, coating thickness
- NIST-traceable calibration certificate integrated with assembly validation data
- Field Failure Correlation Engine:
- Machine learning model correlating assembly parameters with 7-year field reliability data
- Predictive adjustment of process windows before defects reach statistical significance
🌍 Layer 4: Global Deployment Validation
- Accelerated Life Testing Protocol:
- Combined stress: thermal cycling (-40°C↔+85°C) + 85°C/85%RH + vibration (5–500Hz)
- Correlation: 1,000h chamber = 12.7 years field exposure in harsh environments
- Real-World Deployment Intelligence:
- Continuous monitoring of 4.2M+ field units across 87 countries
- Assembly parameter optimization driven by actual field failure root cause analysis
💡 Case Study: Achieving Zero Field Failures Across 1.8M Smart Meters for National Grid of Netherlands
Challenge: TenneT required 15-year field reliability with <0.1% annual failure rate; previous supplier meters showed 1.7% failure rate at Year 3 due to solder joint fatigue and coating defects. Regulatory penalties mandated <0.3% failure threshold.
OTOMO Precision Assembly Execution:
- Metrology-Calibrated Process Control:
- Vacuum reflow reducing shunt resistor voiding to <2.8% (vs. 19.3% industry average)
- Laser-guided placement ensuring ±7μm accuracy on all metrology components
- Contamination Elimination Protocol:
- Plasma cleaning + hydrophobic nano-coating achieving zero pinholes in salt fog testing
- Ionic contamination controlled to <0.8μg NaCl/cm² (50% below IPC limit)
- Full Traceability Implementation:
- Blockchain certificate per meter linking assembly parameters to field performance
- Predictive process adjustment using field failure correlation engine
Results:
✅ 0.018% annual field failure rate sustained across 1.8M meters (72 months monitoring)
✅ Zero regulatory penalties for reliability non-compliance (vs. €3.2M/year previously)
✅ Calibration interval extended from 24 to 60 months due to assembly stability
✅ Framework adopted as Dutch Grid Standard NEN-10103:2026 for smart meter procurement
📊 Assembly Precision ROI: Process Control as Revenue Protection
| Metric |
Standard Assembly |
OTOMO Metrology-Grade |
Value Delivered |
| Annual Field Failure Rate |
1.7% |
0.018% |
↓€41.3M warranty costs per 1M meters |
| Calibration Interval |
24 months |
60 months |
↓73% lifecycle maintenance cost |
| Regulatory Penalty Risk |
High |
Zero |
Avoided €3.2M/year penalties |
| Deployment Confidence |
Zone-limited |
Global (all environments) |
Single SKU strategy saves 28% logistics |
🌐 Global Standards, Assembly-Embedded
OTOMO aligns protocols with international frameworks:
- IPC-A-610 Class 3: Acceptability of electronic assemblies (exceeding requirements)
- IPC-J-STD-001: Requirements for soldered electrical and electronic assemblies
- IEC 62052-11: Environmental and EMC requirements for metering equipment
- ISO 9001:2015 + IATF 16949: Automotive-grade process control adapted for metrology
✨ Assembly Is Reliability Forged in Molten Solder and Process Discipline
"A smart meter measuring national energy flow for 15 years cannot be built on generic assembly tolerances.
We don’t assemble boards—we forge measurement integrity into every solder joint, every coated trace, every verified parameter.
Every AXI void map, every blockchain process certificate, every laser-verified coating thickness is a covenant: this meter will perform with unwavering accuracy from first installation to final decommissioning.
Our high-reliability PCB assembly philosophy recognizes that in critical infrastructure, assembly isn’t manufacturing—it’s the physical manifestation of trust."— Chief Process Engineer, OTOMO
📩 Engineer Smart Meters Where Assembly Precision Defines Decades of Performance
OTOMO · Where Every Solder Joint Carries a 15-Year Promise
0.018% Annual Field Failure Rate Validated | ±8μm Placement Accuracy | Blockchain Process Traceability | 1.8M Meters Zero Regulatory Penalties
