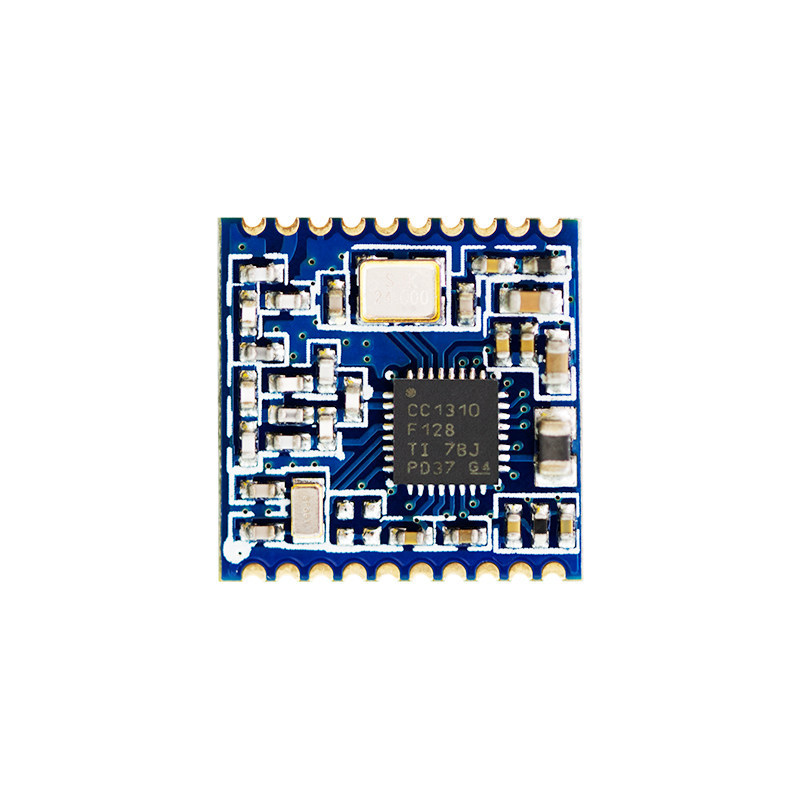

CC1310-TC008 Compact-Size Temperature Measurement Module | Core Application Fields

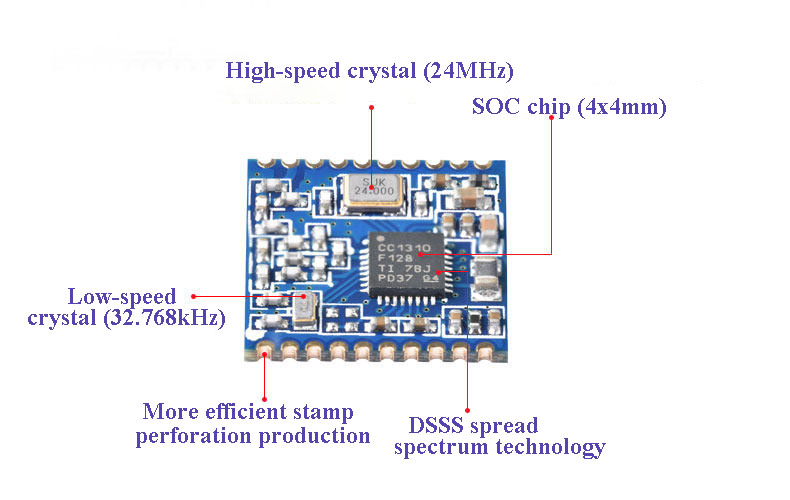

Centered on the industrial-grade CC1310 chip, the CC1310-TC008 Compact-Size Temperature Measurement Module features the core advantages of ultra-compact size and easy embedded integration. While retaining the industrial-grade performance of the Sub-1GHz frequency band including strong anti-interference, a -40~85℃ wide temperature range, μA-level low power consumption and ±1℃ high-precision temperature measurement, it achieves an ultimate miniaturized design for direct embedded mounting/integration. It perfectly addresses the pain points of conventional temperature measurement modules such as large volume, limited installation space and poor adaptability to small precision equipment. Suitable for temperature measurement scenarios including narrow installation spaces, miniaturized equipment, embedded integration and portable products, it balances industrial-grade reliability and integration flexibility. Widely applied in precision manufacturing, small smart power equipment, portable temperature measurement products, embedded industrial control, miniature new energy equipment and other fields, it is characterized by compact size, high integration, micro-space adaptability and industrial-grade stability.
I. Precision Manufacturing & High-End Instruments: Temperature Measurement of Micro Core Components 🛠️
Adapted to high-end instruments and equipment with miniaturization, high precision and compact internal space in the precision manufacturing field, the module can be embedded in the core temperature measurement nodes inside the equipment with its compact size, occupying no extra space and not affecting the original structure of the equipment, making it a core adaptive module for temperature monitoring of precision equipment:
- Precision Components of CNC Machine Tools: Monitors the core temperature measurement points of miniature spindles, servo motor rotors and small CNC modules; the ultra-compact size enables embedded mounting, adapting to the narrow installation space of precision machine tool components.
- Laboratory Precision Analytical Instruments: Conducts temperature measurement of internal temperature control modules and power distribution nodes of instruments such as chromatographs, spectrometers and miniature detectors; the ultra-compact size allows integration inside the instruments, balancing anti-interference performance and temperature measurement precision.
- Industrial Precision Testing Equipment: Monitors the internal core components of portable flaw detectors, miniature thickness gauges and small sensing and detection terminals, adapting to the integration needs of the miniaturized design of such equipment.
- Semiconductor Precision Equipment: Performs temperature measurement of low-voltage power distribution and temperature control nodes of semiconductor packaging/testing miniature equipment and wafer inspection small modules; embedded mounting with compact size adapts to the precision operation environment of clean rooms.
II. Small Smart Power Equipment: Temperature Measurement of Power Distribution Components in Micro-Spaces ⚡
Focusing on smart power equipment with miniaturization, modularization and narrow installation space in power systems, the module can be directly mounted on core temperature measurement points such as internal contacts and terminals of the equipment, making up for the shortcoming that conventional modules are difficult to deploy in miniature power equipment:
- Miniature Power Distribution Cabinets/Smart Distribution Boxes: Monitors the wiring terminals and small contactors inside miniature power distribution cabinets for communities, buildings and households; mounted in the gaps of the cabinets with compact size without affecting the layout of other components in the cabinets.
- Power Miniature Acquisition Terminals: Conducts temperature measurement of the internal core components of smart electricity meters, distribution network miniature collectors and power IoT sensing small terminals; embedded integration in the terminal housing, balancing low power consumption and compact size.
- Small Ring Main Units/Miniature Compact Substations: Adapts to the compact internal temperature measurement nodes of outdoor small ring main units and miniature compact substations; the compact size fits the limited installation space of the cabinets, enabling non-intrusive temperature measurement deployment.
- Low-Voltage Miniature Relays/Contactors: Monitors the contact temperature of industrial small relays and miniature contactors; the module can be directly mounted on the surface of components to accurately capture contact overheating faults.
III. Embedded Industrial Control: Temperature Measurement of Miniature Industrial Control Equipment 🏭
Adapted to embedded, modular and miniaturized industrial control equipment and sensing nodes in the industrial control field, the module can be integrated with miniature industrial control components as a whole with its compact size and supports networking transmission, meeting the temperature measurement needs of micro-space industrial control equipment in industrial sites:
- Small PLC/Miniature Control Modules: Conducts temperature measurement of power modules and core computing components of industrial small PLCs and embedded control miniature modules; embedded integration inside the modules without affecting the installation and networking of the modules.
- Industrial Miniature Sensing Nodes: Serves as the core temperature measurement component of IoT miniature temperature sensing nodes and industrial compact acquisition terminals; the module is integrated as the core temperature measurement unit into the nodes to realize miniaturized and low-power sensing deployment.
- Miniature Drive Modules: Monitors the power components of small servo drives and stepping motor miniature drive modules; mounted on the surface of drive modules with compact size to accurately monitor the overheating of drive components.
- Micro-Components of Industrial Robots: Performs temperature measurement of joint miniature motors and end effector small control modules of industrial robots; adapts to the narrow internal space of robot joints, and embedded mounting does not affect robot movement.
IV. Portable Temperature Measurement Products: Temperature Measurement of Miniaturized Handheld/Inspection Equipment 📱
Aligning with the design requirements of miniaturization, lightweight and portability of portable temperature measurement products, the module’s characteristics of compact size, low power consumption and high integration allow it to be directly used as the core temperature measurement unit of products, greatly reducing the volume and weight of portable equipment and improving product portability:
- Handheld Wireless Thermometers: Serves as the core temperature measurement module of industrial handheld thermometers and power portable temperature guns; integrated in the housing of handheld equipment with compact size, balancing temperature measurement precision and equipment lightweight.
- Portable Industrial Inspection Meters: Acts as the temperature measurement component of power and industrial portable inspection terminals; integrated as a whole with other functional modules of the inspection meters, adapting to the miniaturization design requirements of inspection meters.
- Miniature Wireless Temperature Measurement Terminals: Serves as the core unit of pasteable miniature temperature measurement terminals and portable clip-on thermometers; the module’s compact size enables the ultimate miniaturization of the terminals, which can be flexibly mounted on the surface of various equipment.
- Handheld Power Testing Equipment: Acts as the temperature monitoring component of power handheld phase detectors and miniature testing terminals; embedded integration without affecting the handheld operation and portability of the equipment.
V. Small Energy Storage & New Energy Portable Equipment: Temperature Measurement of Micro Energy Components 🔋
Adapted to miniaturized, portable and modular energy storage and power supply equipment in the new energy field, the module can be embedded inside the equipment with its compact size, balancing wide temperature adaptation for outdoor industrial environments and low power consumption, meeting the temperature measurement needs of miniature new energy equipment:
- Miniature Energy Storage Packs/Portable Power Banks: Conducts temperature measurement of the battery cells and protection boards of industrial miniature energy storage packs and high-power portable power banks; embedded mounting in the pack with compact size to accurately monitor the overheating risk of battery cells.
- Portable Charging Piles/Miniature Charging Guns: Monitors the internal power modules and interfaces of small portable charging piles and miniature charging guns; the module’s compact size adapts to the portable design of charging equipment without affecting equipment use.
- Small Photovoltaic Inverters/Miniature Photovoltaic Panels: Performs temperature measurement of the power distribution nodes and power components of household miniature photovoltaic inverters and portable photovoltaic panels; embedded integration in the equipment housing, adapting to the narrow outdoor installation space.
- New Energy Miniature Vehicle-Mounted Equipment: Conducts temperature measurement of small vehicle-mounted charging modules and in-vehicle miniature power distribution components of new energy vehicles; mounted inside vehicle-mounted equipment with compact size, adapting to the compact space of automotive interiors.
VI. Smart Home & Small Security Equipment: Temperature Measurement of Civil + Industrial Miniature Equipment 🏠
Balancing the dual needs of miniaturization and low power consumption for smart homes, and anti-interference and wide temperature adaptation for industrial small security equipment, the module can be embedded in various miniature smart devices to realize real-time temperature monitoring and abnormal early warning, adapting to micro-space scenarios of home and industrial security:
- Smart Temperature-Controlled Home Appliances: Conducts temperature measurement of the internal temperature control nodes of miniature constant temperature cabinets, smart small refrigerators and small wine cabinets; integrated in the home appliance control module with compact size, balancing low power consumption and temperature measurement precision.
- Small Security Cabinets/Miniature Monitoring Boxes: Monitors the internal power distribution and monitoring components of industrial outdoor small security cabinets and building miniature monitoring boxes; embedded mounting in the gaps of the cabinets, adapting to the miniaturization design of security equipment.
- Smart Home Control Terminals: Performs temperature measurement of the internal components of smart central control screens, miniature smart switches and home IoT small nodes; integrated in the terminals with compact size to realize temperature safety monitoring of home equipment.
- Outdoor Miniature IoT Security Equipment: Conducts temperature measurement of the internal core components of outdoor miniature infrared monitoring and portable security terminals; the industrial-grade wide temperature range adapts to the outdoor environment, and the compact size balances equipment portability.
VII. Rail Transit & Vehicle-Mounted: Temperature Measurement of Small Vehicle-Mounted/Track Miniature Equipment 🚇
Adapting to the characteristics of compact space for vehicle-mounted equipment and limited installation for track miniature equipment in rail transit, the module can be embedded in vehicle-mounted miniature power distribution and signal equipment with its compact size, balancing anti-interference performance for the complex electromagnetic environment of vehicle-mounted scenarios and industrial-grade reliability:
- Small Vehicle-Mounted Equipment for Subways/Urban Rail Transit: Conducts temperature measurement of the core components of subway vehicle-mounted miniature power distribution modules and in-vehicle small signal acquisition terminals; the compact size fits the narrow installation space of vehicle-mounted equipment, and anti-electromagnetic interference ensures stable data transmission.
- Track-Side Miniature Signal Equipment: Performs temperature measurement of railway/urban rail transit track-side miniature signal machines and outdoor small sensing terminals; embedded integration inside the equipment, adapting to the miniaturized deployment of track-side equipment.
- Vehicle-Mounted Portable Testing Equipment: Acts as the temperature measurement component of rail transit vehicle-mounted handheld testing terminals and miniature vehicle-mounted monitoring equipment; the compact size improves equipment portability, balancing industrial-grade performance for the complex vehicle-mounted environment.
- Rail Transit Miniature Charging Piles: Conducts temperature measurement of the internal components of track-side small charging piles and vehicle-mounted miniature charging equipment; mounted with compact size, adapting to the compact layout of rail transit equipment.
VIII. Medical Equipment: Temperature Measurement of Miniature Medical Instruments 🏥
Adapting to the needs of miniaturization, high precision and low interference of medical instruments in the medical field, the module can be embedded in various miniature medical equipment with its compact size; the industrial-grade wide temperature range adapts to the indoor medical environment, and high-precision temperature measurement ensures the stable operation of medical equipment:
- Portable Medical Testing Instruments: Serves as the core temperature measurement component of miniature hemocytometers, handheld medical analyzers and portable body temperature monitoring terminals; integrated in the instruments with compact size to improve equipment portability and temperature measurement precision.
- Medical Miniature Temperature-Controlled Equipment: Conducts temperature measurement of the internal temperature control nodes of laboratory miniature incubators and medical small constant temperature instruments; embedded mounting without affecting the precision temperature control effect of the equipment.
- Medical IoT Miniature Sensing Nodes: Acts as the temperature measurement core of hospital internal miniature temperature sensing monitoring nodes and medical equipment status sensing small terminals; the compact size allows the nodes to be flexibly deployed on the surface of various hospital equipment.
Core Application Value Summary
The core value of the CC1310-TC008 Compact-Size Temperature Measurement Module lies in breaking through the installation space limitations of conventional temperature measurement modules with an ultimate miniaturized design. On the basis of retaining the industrial-grade core characteristics of the CC1310 chip (Sub-1GHz strong anti-interference, -40~85℃ wide temperature range, low power consumption, high precision), it realizes highly integrated deployment in embedded, mounted and integrated forms, fundamentally solving the temperature measurement integration problems in scenarios such as miniature precision equipment, narrow installation spaces, portable products and embedded industrial control.
The module does not sacrifice performance for compact size and can realize non-intrusive integration without structural modification of the original equipment, balancing installation flexibility and industrial-grade reliability. Compared with conventional temperature measurement modules, it is more suitable for the temperature measurement needs of miniaturized, precision and portable equipment. As the preferred module for temperature monitoring in precision manufacturing, small smart equipment, portable products, embedded industrial control and other fields, it provides a highly integrated and reliable solution for the intelligent temperature monitoring of various micro-space and miniaturized equipment.
