K4AAG165WA-BCTD000

Introduction

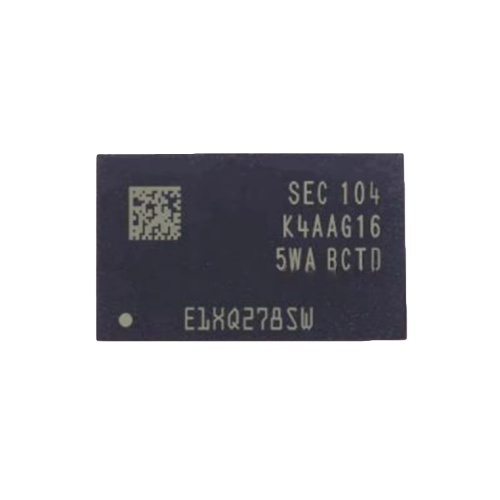

K4AAG165WA-BCTD000 is a high-performance 16 Gb DDR4 SDRAM (Double Data Rate 4 Synchronous Dynamic Random Access Memory) chip manufactured by Samsung Electronics. As part of the premium K4A series, it utilizes Samsung's advanced 1x nm process technology to deliver a perfect balance of high bandwidth, low power consumption, and enhanced reliability. With a single-chip capacity of 16 Gb (2 GB) and a 16-bit data width (x16), it supports data rates up to 2666 Mbps (PC4-21300).

This chip is designed for a wide range of applications, from consumer electronics like high-end laptops and tablets to industrial and network equipment such as small enterprise servers, 5G routers, and AI edge computing devices. The suffix "BCTD000" denotes the specific 96-ball FBGA packaging and commercial temperature range, ensuring compatibility with high-density memory module designs.

Key Features

Core Performance

• High Density: 16 Gb (2048 MB) capacity, organized as 1G x 16 (1 Gigabit x 16-bit I/O).
• High Speed: Supports data rates up to 2666 Mbps (PC4-21300), with a clock frequency of 1333 MHz.
• Low Power: Operates at 1.2V (VDD/VDDQ), reducing power consumption by approximately 20-25% compared to DDR3, ideal for battery-powered and energy-efficient devices.
• High Bandwidth: Achieves a peak bandwidth of 21.3 GB/s per chip.

Advanced Architecture & Reliability

• Bank Architecture: Utilizes 8 Banks grouped into 4 Bank Groups (BG0~BG3) to improve concurrent access efficiency and reduce latency.
• Signal Integrity:
  • On-Die Termination (ODT): Integrated ODT improves signal quality by matching impedance on the PCB.
  • Write CRC & Parity: Features Write Cyclic Redundancy Check (CRC) and parity checking for command/address buses to enhance system reliability.
• Refresh Management: Supports Temperature Compensated Self-Refresh (TCSR) and Auto Self-Refresh (ASR) to optimize power consumption based on temperature.
• Training Features: Supports Write Leveling and Read Leveling for fly-by topology to compensate for signal skew.

Package & Environmental Specifications

• Package: 96-ball FBGA (Fine-pitch Ball Grid Array) with a ball pitch of 0.8mm. The compact footprint (approx. 13mm x 10.67mm) is suitable for high-density designs.
• Temperature Range: Commercial Grade: 0°C to +85°C (Ambient/Case). (Note: Industrial grade -40°C~85°C versions exist with different suffixes like "BIWE").
• RoHS Compliant: Lead-free and halogen-free.

Typical Specification Table

Typical Applications

• High-Performance Computing:
  • Laptops & Ultrabooks: Used as main system memory (often paired with another 16Gb chip for 32GB total in high-end models).
  • All-in-One PCs & Mini-PCs: High-density memory in compact form factors.
  • Professional Workstations: Supports high-bandwidth requirements for discrete GPUs (dGPU) and complex rendering tasks.
• Network & Communication:
  • 5G Routers & Gateways: Handles high-speed packet processing and multi-device concurrent connections.
  • Enterprise Switches: Provides fast buffer memory for data forwarding.
  • Edge Servers: High-speed caching for edge computing applications.
• Graphics & Multimedia:
  • Smart TVs & Set-top Boxes: Supports 4K/8K video decoding and complex OS running.
  • Gaming Consoles: Provides high-speed memory for game assets and frame buffers.
• Industrial & Embedded:
  • Industrial Controllers & HMI: Stable operation in 0-85°C environments for factory automation.
  • Edge AI Devices: Provides high-speed storage for AI model parameters and real-time data inference.

Development & Design Notes

1. PCB Layout:
   • Impedance Control: Strict control of 50Ω single-ended and 100Ω differential impedance for DQ, DQS, CK, and CA signals is mandatory.
   • Length Matching: Data group (DQ) must be matched with Strobe (DQS) within ±5mil. Address/Command (CA) must be length-matched to the Clock (CK).
   • Layer Stack-up: Recommended 6-layer or 8-layer board with solid ground planes to minimize crosstalk and EMI.
2. Power Integrity:
   • DDR4 is sensitive to power noise. Place decoupling capacitors (0.1µF, 0.01µF, 10µF) as close as possible to the VDD/VDDQ pins.
   • Use a low-noise LDO or high-efficiency DC-DC converter; keep ripple voltage below 50mV.
3. Thermal Management:
   • Although power consumption is low, ensure adequate airflow or thermal vias under the FBGA package if operating near the upper temperature limit (85°C).
4. Initialization:
   • The memory controller must execute a strict power-up sequence, including ZQ calibration (impedance matching) and write leveling training, to ensure stable operation at 2666 Mbps.
5. Configuration:
   • The "WA" in the part number typically indicates the speed grade (2666 Mbps). Verify the exact speed bin and timing parameters via the full Samsung datasheet, as CL/tRCD/tRP values depend on the final binning.
