K4UBE3D4AB-MGCL000

Introduction

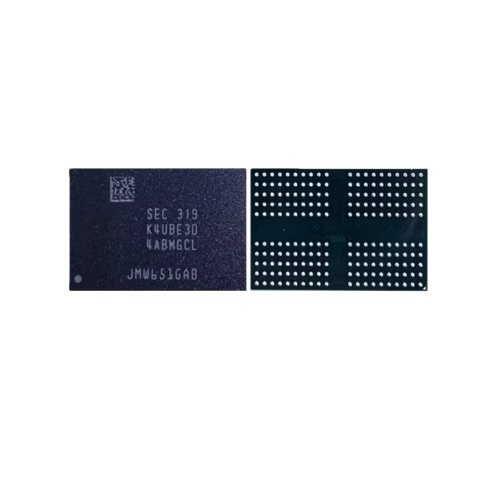

K4UBE3D4AB-MGCL000 is a high-density 32 Gb (4 GB) LPDDR4X (Low Power Double Data Rate 4X) SDRAM memory chip manufactured by Samsung Electronics. As a member of the premium K4U series, it utilizes Samsung's advanced 1y-nm (1J) process technology and is designed specifically for mobile devices and embedded systems requiring extreme performance and power efficiency. This chip complies with the JESD209-4 (LPDDR4X) standard, integrating DRAM cells and a controller into a 200-ball FBGA (Fine-pitch Ball Grid Array) package with a standard LPDDR interface.

Important Note: According to Samsung's official product lifecycle status, the base model K4UBE3D4AB-MGCL is marked as EOL (End of Life). This means the part is in the final phase of its lifecycle and is only available for existing project maintenance or Last Time Buy (LTB). For new designs, it is strongly recommended to migrate to newer LPDDR5 or successor LPDDR4X models (such as the K4UCE3Q4AB-MGCL) to ensure long-term supply and technical support.

Key Features

Core Specifications

• Density: 32 Gb (4 GB), typically achieved by stacking multiple DRAM dies (often in a 256M x 128 architecture).
• Memory Type: LPDDR4X SDRAM built on 1y-nm process technology, featuring high density and low leakage.
• Interface Standard: LPDDR4X, backward compatible with LPDDR4.
• Bus Width: Supports 32-bit data bus (x32); some configurations support ECC.
• Data Rate: Supports a maximum theoretical data rate of 4266 Mbps (PC4-34100 equivalent).
• Operating Voltage: Multi-voltage rail: 1.8V (VDDQ), 1.1V (VDD2), and 0.6V (VDD), supporting dynamic voltage scaling for power optimization.

Performance & Architecture

• Controller: Integrated high-performance Samsung controller supporting Hardware ECC (Error Correction Code), Temperature Compensated Self-Refresh (TCSR), and Auto Self-Refresh (ASR) to significantly improve data reliability and system stability.
• Signal Integrity:
  • On-Die Termination (ODT): Integrated termination to reduce signal reflections.
  • Write CRC & Parity: Cyclic Redundancy Check and parity checking for command/address buses to enhance noise immunity.
• Training Features: Supports Write Leveling and Read Leveling to adapt to fly-by topology and compensate for signal skew.
• Low Power: LPDDR4X further reduces I/O voltage to 0.6V compared to LPDDR4, lowering power consumption by approximately 10-15% during high-speed operation, significantly extending battery life.

Package & Reliability

• Package: 200-ball FBGA with a ball pitch of 0.5mm or 0.65mm; compact footprint (approx. 12mm x 16mm).
• Operating Temperature: Commercial Grade: -25°C to +85°C (per Samsung official data). Some distributor data indicates up to -40°C to +105°C, but the official datasheet should prevail.
• Durability: As DRAM, it features extremely high endurance (P/E cycles are not applicable) with excellent data retention and soft error resistance.

Typical Specification Table

Typical Applications

• High-Performance Mobile:
  • Flagship Smartphones & Tablets: Used as 4GB/8GB system memory to support 4K/8K video recording, multitasking, and AI acceleration.
  • 5G Terminals: The high-speed LPDDR4X interface meets the high-bandwidth memory requirements of 5G modems.
• Automotive Electronics:
  • Smart Cockpit/ADAS: Stores high-precision maps and runs complex navigation algorithms and ADAS systems, requiring high reliability in wide temperature ranges.
  • In-Vehicle Entertainment: Supports multi-screen interaction and streaming media playback.
• Embedded & IoT:
  • Edge Computing Gateways: Acts as high-speed cache for local AI inference, processing large volumes of sensor data.
  • Industrial Controllers: Provides fast response times in factory automation and robotic control.
• High-Performance Computing:
  • AI Accelerators: Some edge AI chips use LPDDR4X as video memory or system memory to balance bandwidth and power consumption.

Development & Design Notes

1. PCB Layout:
   • Impedance Control: Strict control of 50Ω single-ended impedance for LPDDR4X high-speed signals (DQ, DQS, CK) and 100Ω differential impedance for differential pairs (CK_t/CK_c, DQS_t/DQS_c) is mandatory for speeds >4000 Mbps.
   • Length Matching: Length mismatch between the data group (DQ) and the strobe (DQS) must be within ±5mil. Address/Command (CA) lines must be length-matched to the Clock (CK).
   • Layer Stack-up: An 8-layer or 10-layer board is recommended to ensure solid ground and power planes, minimizing crosstalk and EMI.
2. Power Integrity:
   • LPDDR4X is extremely sensitive to power noise. Place decoupling capacitors (0.1µF, 1µF, 10µF) as close as possible to the VDDQ (1.8V), VDD2 (1.1V), and VDD (0.6V) pins.
   • Strictly adhere to the power-up sequence: 1.8V -> 1.1V -> 0.6V to prevent latch-up.
3. Thermal Management:
   • Although LPDDR4X has low power consumption, it generates heat during high-speed bursts at 4266 Mbps. It is recommended to pour copper on the bottom layer of the PCB and add thermal vias under the BGA package connected to internal ground planes or top-layer heat sinks.
4. Initialization & Training:
   • Upon power-up, the memory controller must execute a strict initialization sequence, including ZQ Calibration (impedance matching), Write Leveling, and Read Leveling to ensure signal stability at high frequencies.
5. Alternatives & Migration:
   • Since this model is EOL, it should be avoided for new designs. Recommended alternatives include:
     • Same Generation Upgrade: K4UCE3Q4AB-MGCL (32Gb LPDDR4X, similar performance, longer lifecycle).
     • Next Generation: K3KL Series (LPDDR5), offering higher bandwidth (6400 Mbps+) and lower power consumption, but requires an SoC supporting LPDDR5.
