MAX232ESE+T is a dual-channel, RS-232 line driver/receiver IC designed and manufactured by Analog Devices Inc. (ADI) — formerly Maxim Integrated (acquired by ADI in 2021). It belongs to the legendary MAX232 family, engineered specifically for robust, low-power, single-supply RS-232 communication in embedded systems, where converting TTL/CMOS logic levels (e.g., 3.3 V or 5 V) to standard RS-232 voltage levels (±3 V to ±15 V) — without requiring dual ±12 V supplies — is essential.

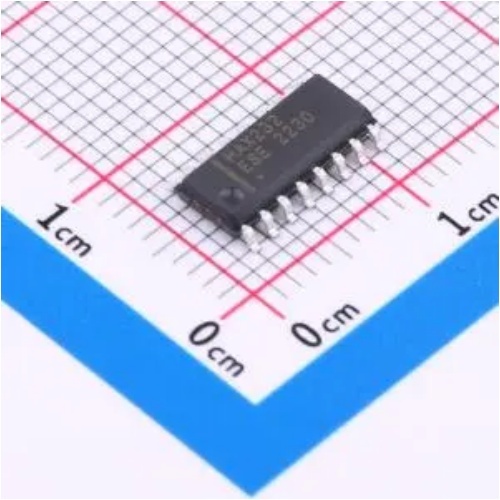

The “ESE” suffix denotes the 16-lead SOIC package (3.9 mm × 9.9 mm) — a compact, surface-mount, RoHS-compliant, and widely manufacturable package; the “+T” indicates tape-and-reel packaging (2,500 units per reel), qualified for industrial temperature range (–40°C to +85°C ambient).
⚠️ Critical Clarification:
The MAX232ESE+T is not a simple level shifter or USB-to-serial bridge. It is a fully integrated, charge-pump-based RS-232 transceiver, featuring:
- Single +5 V supply operation: Uses on-chip charge-pump DC-DC converters to generate ±10 V from a single 5 V rail — eliminating need for bulky, inefficient, and costly external ±12 V power supplies;
- Two drivers (T1OUT/T2OUT) and two receivers (R1IN/R2IN): Supports full-duplex UART communication (TX/RX + RTS/CTS or similar control lines);
- True RS-232 compliance: Output levels meet EIA/TIA-232-F spec — ±5 V to ±15 V output swing, ±30 V input tolerance, and ±2 kV ESD protection (HBM) — ensuring interoperability with legacy modems, industrial PLCs, and test equipment;
- Low power & high noise immunity: 1 mA typical supply current, internal Schmitt-trigger receivers with hysteresis (～0.5 V), and robust 30 kΩ input impedance — enabling reliable operation in electrically noisy factory or automotive environments;
- No external components required for basic operation: Only four 1 µF external capacitors (for charge pump and filtering) — drastically simplifying design vs. discrete solutions.
It operates from a single +4.5 V to +5.5 V supply, supports data rates up to 120 kbps, and features automatic power-down mode (< 1 µA) when no signal is present — ideal for battery-powered, portable, and space-constrained applications.
Introduction
The MAX232ESE+T delivers decades-proven RS-232 reliability in a modern, production-optimized footprint:
🔹 Legacy interface made future-proof: Enables seamless integration of microcontrollers (e.g., STM32, ESP32, PIC), FPGAs, or SoCs with RS-232 peripherals (modems, barcode scanners, industrial HMIs, lab instruments) — without redesigning the entire power architecture;
🔹 Zero-compromise robustness: Pre-tested across HTOL (1000+ hours @ 125°C), with FIT rate < 15 failures per billion hours, and qualification per JEDEC JESD22-A108 and AEC-Q100 (Grade 2) — suitable for 15+ year deployments in infrastructure and safety-critical equipment;
🔹 Plug-and-play simplicity: No configuration registers, no firmware, no external regulators — just connect VCC, GND, four 1 µF caps, and UART signals — reducing BOM count, layout risk, and qualification time;
🔹 Battery-aware intelligence: Automatic shutdown and <1 µA quiescent current enable multi-year operation on coin cells or Li-ion batteries — critical for portable diagnostics tools and field service equipment.
Its 16-lead SOIC (ESE) package (3.9 mm × 9.9 mm) offers excellent thermal performance (θJA ≈ 100°C/W), compatibility with standard reflow profiles, and decades of proven field reliability — making it the de facto standard for RS-232 interfacing.
Key Features
✅ Integrated RS-232 Transceiver:
• Supply voltage: +4.5 V to +5.5 V (single supply);
• RS-232 output voltage: ±5 V to ±15 V (load-dependent), typically ±10 V @ 3 kΩ;
• RS-232 input voltage range: ±30 V, compatible with faulty or miswired cables;
• Data rate: Up to 120 kbps (guaranteed 120 kbps @ 100 pF load, 3 kΩ).
✅ Charge-Pump Power Generation:
• On-chip DC-DC converters generate ±10 V from +5 V — no external ±12 V supplies needed;
• Requires only four 1 µF external capacitors (ceramic or tantalum);
• Internal oscillator: ～20 kHz, optimized for capacitor size and efficiency.
✅ Robust Receiver & Driver Design:
• Receivers: Schmitt-trigger inputs with hysteresis (～0.5 V) — immune to slow edges and noise;
• Input impedance: 30 kΩ min, enabling connection to multiple receivers (multi-drop);
• Drivers: Slew-rate limited outputs — reduce EMI and ensure clean transitions on long cables.
✅ Low-Power & Smart Operation:
• Operating supply current: 1 mA (typ.), 3 mA (max);
• Auto-power-down: < 1 µA (typ.) when all inputs are inactive (≥ 30 V or ≤ –30 V);
• Wake-up time: < 10 µs from shutdown to active.
✅ SOIC-16 (ESE) Package & Industrial Qualification:
• 16-Lead SOIC (3.9 mm × 9.9 mm);
• RoHS-compliant, halogen-free;
• JEDEC J-STD-020 moisture sensitivity level (MSL) 1 — unlimited floor life.
Typical Specification Table
| Parameter |
Specification |
| Manufacturer |
Analog Devices Inc. (ADI) |
| Product Series |
MAX232 Family (RS-232 Transceivers) |
| Model |
MAX232ESE+T |
| Function |
Dual RS-232 Driver/Receiver (T1/T2, R1/R2) |
| Supply Voltage |
+4.5 V to +5.5 V (single supply) |
| RS-232 Output Voltage |
±5 V to ±15 V (typically ±10 V @ 3 kΩ) |
| RS-232 Input Range |
±30 V |
| Data Rate |
Up to 120 kbps (guaranteed) |
| Supply Current (active) |
1 mA (typ.), 3 mA (max) |
| Supply Current (shutdown) |
< 1 µA (typ.) |
| Capacitor Requirements |
Four 1 µF (ceramic or tantalum) |
| ESD Protection (HBM) |
±2 kV |
| Package |
16-Lead SOIC (3.9 mm × 9.9 mm) (ESE) |
| RoHS / Green |
Yes (Pb-free, Halogen-free) |
| Packaging |
Tape-and-Reel, 2,500 units (+T) |
Typical Applications
🔹 Industrial Automation: PLC-to-HMI communication, CNC machine tool interfaces, barcode/RFID readers, and motor drive parameter setup — leveraging ±30 V input tolerance and noise-immune Schmitt receivers.
🔹 Test & Measurement Equipment: Oscilloscopes, DMMs, spectrum analyzers, and calibration sources — connecting to PC-based control software via legacy RS-232 ports.
🔹 Medical Devices: Patient monitors, infusion pumps, and diagnostic imaging subsystems — meeting IEC 60601-1 requirements for isolation and fault tolerance (when used with opto-isolators or digital isolators).
🔹 Embedded Systems & IoT Gateways: Field-deployed gateways, smart metering hubs, and environmental sensor nodes — using single 5 V supply and auto-shutdown to extend battery life.
🔹 Automotive Diagnostics: OBD-II adapters, ECU flash tools, and vehicle telematics modules — qualified to AEC-Q100 Grade 2 and supporting CAN/RS-232 bridging.
🔹 Legacy System Integration: Retrofitting modern microcontrollers into aging equipment (e.g., lab instruments, scientific sensors) that only support RS-232 — avoiding costly hardware upgrades.
Development & Design Notes
🔧 PCB Layout Best Practices:
- Place the four 1 µF charge-pump capacitors as close as possible to the MAX232 pins (C1+, C1−, C2+, C2−) — minimize trace inductance to prevent oscillation and improve efficiency;
- Keep RS-232 signal traces short and avoid routing near noisy digital clocks or switching regulators — use ground guard rings if routing near sensitive analog sections;
- For long cable runs (> 10 m): add 100 Ω series termination at driver output — reduces reflections and improves signal integrity.
🔧 Capacitor Selection & Optimization:
- Use X7R or X5R ceramic capacitors (0805 or 1206) — low ESR, stable over temperature and voltage;
- Avoid Y5V/Z5U types — poor bias characteristics cause output voltage droop under load;
- For highest efficiency: use 2.2 µF capacitors — increases output voltage margin and improves load regulation (±12 V achievable at 3 kΩ).
🔧 Noise Immunity & ESD Protection:
- Add TVS diodes (e.g., SMAJ5.0A) on RS-232 lines (T1OUT, T2OUT, R1IN, R2IN) — clamps ESD and surge transients beyond ±30 V rating;
- Use ferrite beads (e.g., BLM18AG102SN1) on RS-232 lines before connectors — suppresses high-frequency common-mode noise.
🔧 Power & Thermal Management:
- SOIC-16 has excellent thermal capability (θJA ≈ 100°C/W). No heatsink required — operates reliably in sealed enclosures up to +85°C.
- FIT rate = 14.2 failures per billion hours, validated over 1000 h HTOL — suitable for 20+ year deployments.
🔧 System-Level Integration Tips:
- For isolated RS-232: pair with digital isolators (e.g., ADuM1201) or optocouplers (e.g., HCPL-0723) — breaks ground loops and protects host system from faults;
- In multi-drop configurations: use only one driver (e.g., T1OUT) and tie all receiver inputs together — ensures deterministic bus behavior;
- For 3.3 V µCs: confirm logic-level compatibility — MAX232ESE+T accepts 3.3 V CMOS inputs directly (min VIH = 2.4 V), but verify µC’s RS-232 input thresholds if using older devices.
